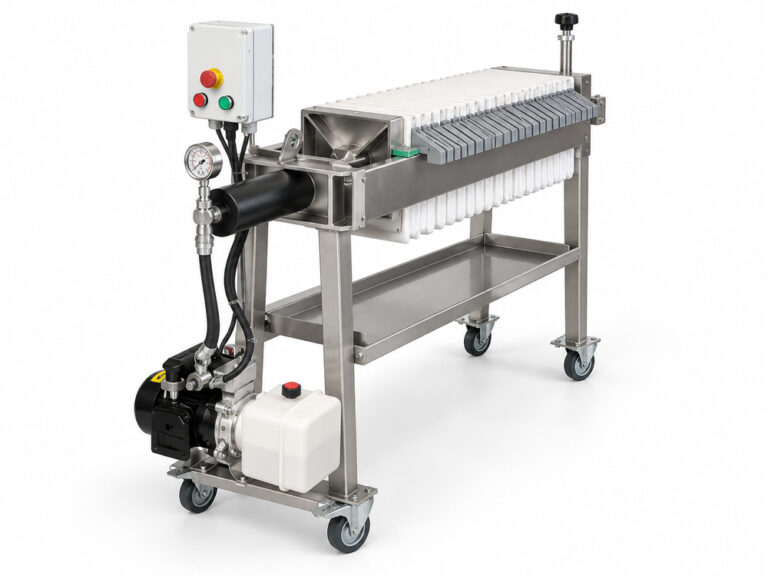

Industrial Oil Filter Machine

Key Features

• Industrial hydraulic plate-type oil filtration system
• Approximate filtration capacity of 150–200 L/h
• 41 filter plates: 21 full and 20 empty plates
• 260 × 260 mm filter plate dimensions
• 20 liters per filtration charge
• Approximately 2–3 bar working fluid pressure
• Approximately 50 °C working fluid temperature
• Semi-automatic hydraulic press opening and closing
• Manual filter plate spacing
• PPC-001 filter cloth combined with filter paper
• Closed filtration discharge system
• Suitable for professional vegetable oil clarification
• Technical guidance and after-sales support available

Semi-Automatic Hydraulic Press System

Unlike the Mini Press Oil Filter, which uses a manual flywheel, the Industrial Oil Filter Machine uses a hydraulic press opening and closing system.

The hydraulic unit uses a 0.55 kW motor and incorporates the hydraulic oil pump, directional valve, pressure switch, suction filter, oil-level indicator, hydraulic hoses and connection components.

Filter plate spacing remains manually controlled, allowing the operator to open the plate group after filtration for filter-paper replacement, cake removal and cleaning.

41-Plate Industrial Filtration System

The filtration chamber consists of 21 full plates and 20 empty plates. Each filter plate measures approximately 260 × 260 mm.

Oil is fed through the center of the filtration system and passes through PPC-001 filter cloth and dedicated filter paper. Suspended solids accumulate inside the plate chambers while clarified oil exits through the closed discharge system.

The specified cake chamber volume is approximately 1 liter, with an approximate cake thickness of 20 mm.

Professional Oil Clarification

Cold pressed oil naturally contains small particles from the processed seed or nut. These particles can remain suspended in the oil immediately after production and may create a cloudy appearance.

Plate filtration helps remove a significant portion of these suspended solids and provides cleaner oil for subsequent storage, filling and commercial packaging.

Actual filtration performance depends on the characteristics of the oil, oil temperature, suspended solid content, filter cloth and filter paper condition.

Suitable Vegetable Oils

The Industrial Oil Filter Machine can be used for filtration of many appropriately prepared vegetable and seed oils, including:

Filtration Capacity Notes

The stated 150–200 L/h filtration capacity is an approximate operating value. Actual filtration speed may vary according to oil viscosity, oil temperature, suspended solid content, filter loading, filter fabric and filter paper condition.

Filter Materials Included

• 2 sets of special filter fabric
• 1 roll of special Italian filter paper – approx. 29 kg

After-Sales Support & Filtration Guidance

Our support does not end when the filter machine is delivered. We provide practical guidance for plate arrangement, filter cloth and paper installation, operating pressure, hydraulic operation, cleaning and routine maintenance.

Remote technical assistance is available through WhatsApp for operating questions and troubleshooting.

If an operating issue cannot be solved through messages or videos, video-call assistance can be provided when required to guide the operator step by step.

Warranty & Spare Parts Support

Spare parts supply is available for up to 10 years.

Normal wear parts are not covered by warranty. Damage caused by incorrect operation, improper maintenance or external factors is also excluded from warranty coverage.

See the Industrial Oil Filter in Operation

Watch our working videos to better understand the hydraulic filtration system, filter plate arrangement and operation of our industrial oil filtration equipment.

Need Help Choosing an Industrial Oil Filtration System?

Tell us which oil you plan to filter, your expected hourly or daily production volume and your filtration requirements. Our team can help you evaluate the most suitable filtration system.
