Mini Press - Mini Press Oil Filter Machine

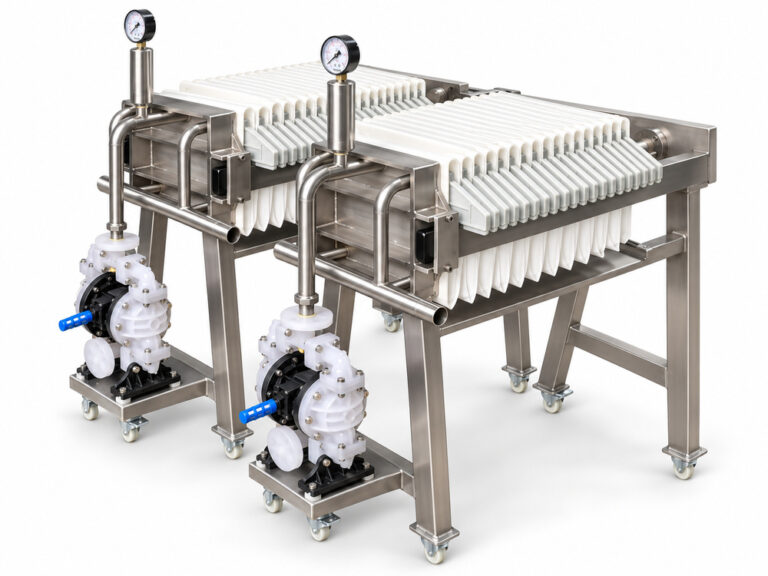

Mini Press Oil Filter Machine - With Fabric Filter System
The mini filter is used for the filtration of micron sized solids in liquids.
Generally, it has to remove the cloudiness in vegetable oils and liquids used in olive oil. This is because the solids in such foods are largely organic and oxidize over time, deteriorating the quality of the product. In the food industry, it is essential to increase the quality, taste and shelf pattern of the product, as well as the need to obtain a clear product.
The desired final product quality is obtained in a very short time by keeping the solid material up to 0.3 - 0.5 microns with the mini filter. In addition to the food industry, it is also used in the cosmetic industry, chemical solution and boron oil filtration.
With our Oil Filtering Machine you can easily clean the following oils and many more:
Safflower Oil, Sunflower Oil, Sesame Oil, Hemp Seed Oil, Hemp Flower Oil, Pumpkin Oil, Black Cumin Oil (Black Seed Oil Oil ), Nigella Oil, Prickly Pear Seed Oil , Grape Seed Oil, Coconut Oil, Hazelnut Oil, Peanut Oil, Walnut Oil, Poppy Oil, Flax Seed Oil, Kaki Oil,
Almond Oil, Jajoba Seed Oil, Pomegranate Seed Oil, Castor Seed Oil, Canola Oil, Melon Seed Oil , Cumin Seed Oil, Apricot Kernel Oil, Mustard Seed Oil, Nettle Seed Oil, Neem Tree Seed Oil, Tomato Oil, Raspberry Oil, Pepper Seed Oil, Rosehip Seed Oil, Cocoa Bean Oil, Cocoa Nibs Oil, Soya bean Oil, Thistle Seed Oil, Blueberry Seed Oil, Tamanu Seed Oil, Sacha Inchi Oil, Coriander Oil, Fennel Seed Oil, Shea Butter Oil etc.
Technical Specifications
| Technical Specifications | Mini Oil Filter |
| Working conditions (fluid temperature / working pressure) |
50 C / 2-3 bar |
| Filtration Capacity (lt/h) | 50-100 |
| Max Filtration Capacity (lt/daily) | 2400 |
| Plate Dimensions(cm) | 26x26 |
| Plate Piece | 20 plates (Empty Full System) |
| Flywheel | Manual
|
| Material properties | |
| Body Material | AISI 304 or AISI 316 |
| Filter Pressure Plates | Polyethylene |
| Handles | AISI 304 |
| Cake Mold | AISI 304 |
| Frame Piping | AISI 304/316, polypropylene
|
| Measurement (L*W*H) (cm) | |
| length (cm) | 160 |
| width (cm) | 60 |
| height (cm) | 110 |
| weight (kg) | 150
|
| Cargo Specifications | |
| length (cm) | 160 |
| width (cm) | 80 |
| height (cm) | 120 |
| weight (kg) | 250 |
| Pallette / Box | Palette
|
| Hs Code / Gtip Code | 842129800019 |
Warranty Terms
- All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
- Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by self infliction or incorrect operation.
Spare Parts and Tools Included with the Machine Sale
1- 2 sets of special filter fabric
2- 1 roll of special Italian filter paper ( 29 KG )
3- 1 piece air gun
4- 1 piece air hose
5- 1 set of compressor connection jacks
