OLIVE OIL 600KG
Boutique Type Olive Oil Machine - Cold Press Method

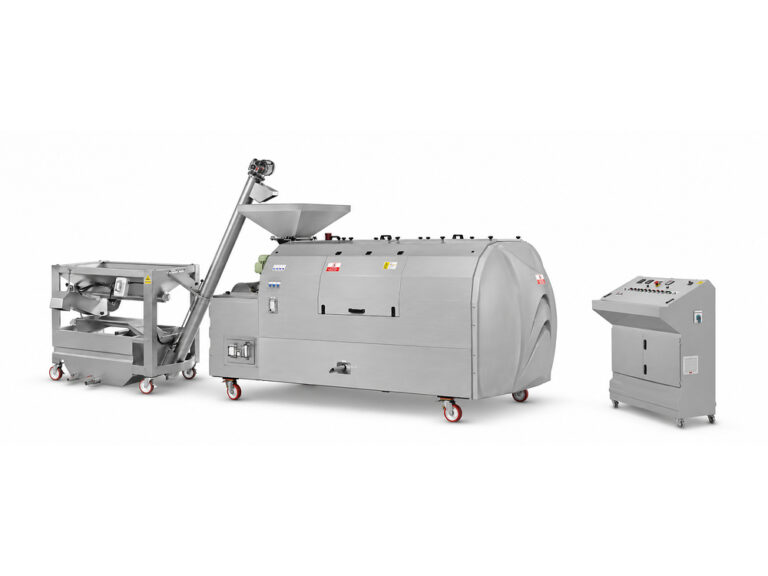

OLIVE OIL 600 KG PROFESSIONAL Boutique Type Olive Oil Machine
System consists of 5 equipments;
1 - OLIVE OIL 600 KG Extraction Unit
2 - OLIVE CONVEYOR BELT
3 - AUTOMATED OLIVE WASHING & DEFOLIATON UNIT
4 - OLIVE CRUSHER ELEVATOR
5 - AUTOMATED CONTROL PANEL
1 - OLIVE OIL 600 KG Extraction Unit
It is a model preferred by large-scale boutique olive oil producers. Operated with auxiliary machinery and equipment, it enables you to reach high production capacities in limited production locations. Olive Oil 600 KG series machines have the capacity to process 550-600 kg of olive paste per hour. Its double malaxator structure enables olives of different types and sizes to be simultaneously processed in separate malaxators reducing waiting times, thus it enables the olives of different types and sizes to be processed faster. The cycloid gear box system in the machine gives the decanter more strength and enables it to work more quietly.
Olive Oil 600 KG processes the olive paste at different speeds by making adjustments based on the olive type and harvesting time of the olives, thus, enables you to work more comfortably. Particularly in order to provide an advantage in production areas without air conditioning, the malaxator heating system produced as standard enables olive paste to be processed within the ideal heat range (18 - 27 degrees) based on the need and increases your olive oil output yield.
2 - OLIVE CONVEYOR BELT
Crated olives are put into the concrete pit, flush-mounted the olive bunker on the ground. The olives pass through the leaf aspirator on the upper part of the belt by means of a PVC olive conveyor belt that can contact with foodstuff and then they are transferred to the olive washing and defoliation unit as debranched and defoliated. The debranching and defoliation processes of olives take place in two steps: first on the conveyor belt and then in the washing and defoliation unit.
Olive Conveyor Belt electric engine works in connection with the inverter, thus provides the service of the olives at the desired speed. The speed control of the belt is easily performed with the speed adjustment button on the control unit of the system. The olive conveyor belt operates automatically, the operation speed of the belt can be manually adjusted to the desired speed. The belt is defined to the system automation, it shuts down itself in case of an emergency.
3 - AUTOMATED OLIVE WASHING & DEFOLIATON UNIT
Olive Washing and Defoliation Unit is a model that works effectively for olives that have dense leaves and pieces of branches. It keeps possible stones and foreign bodies that might have fallen in the washing unit in its chamber thus prevents damages to the system.
Our special production machine is different from other olive washing units in terms of equipment and capacity. The unit works directly coupled to an olive conveyor band and an olive crusher elevator. It is an ideal model for enterprises with high daily olive processing tonnages.
The system starts to operate after the olive washing unit is filled with water and the olives are put into the vibrating bunker of the washing unit via the olive conveyor belt. The olives moving through the vibrating bunker pass through the aspirator and are debranched and defoliated. The olives moving through the water channel with a continuous water circulation flow, pass through a grid and pour into the olive bunker of the crusher elevator in a clean state. The special curved area of the unit keeps foreign bodies with high density here. Foreign bodies are thrown out of the system by a manually operated discharge spiral.
4 - OLIVE CRUSHER ELEVATOR
Screw conveyor with bunker carries the cleaned olives from olive washing and defoliation unit to the crusher unit of the system.
5 - CONTROL PANEL
It is the control panel of all system. It is positioned next to extraction unit. With the multi plug, connection is maden on extraction unit and washing unit
Why OLIVE OIL 600 KG Boutique Olive Oil Machine ? ( Advantages )
- Olive Oil 600 KG is an compact machine processing approximately 550-600 kg olive paste in an hour and designed exclusively for boutique olive oil manufacturers.
- It is suitable for organic production conditions.
- It processes the olive by protecting the beneficial elements and does not cause oxidation.
- Thanks to its double malaxing units, it is possible to process different kinds of olives with different malaxing units at the same time.
- Thanks to heating system of malaxing units, olive paste is processed in intended temperature.
- Decanter has been designed to provide minimum olive oil residual in residue container.
- Olive Oil 600 KG has been designed to be operated by only one personnel and it provides labor-saving to the manufacturer.
- As it is a portable machine, it can be moved to intended location with the aim of its wheels.
- Boutique type olive oil machines are environment friendly, glaucoma waste cannot be discharge from the system directly.
- All surfaces contacting with the food have been manufactured from AISI 304 stainless steel.
Warranty Terms
- Machine motor and gearbox is guaranteed worldwide for 1 year by its manufacturer Watt-Drive.
- Motor driver is guaranteed worldwide for 2 years by its manufacturer Other electrical parts are also under 2 year warranty.
- All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
- Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by self infliction or incorrect operation.
Technical Specifications OLIVE OIL 600KG - Boutique Type Olive Oil Machine
Capacity: 550 – 600 kg/h
380 Volt, 50 Hz
Decanter Drive: Cycloid Gear Box
Decanter Helix: Wear resistant
Double malaxator as horizontal
Olive Paste Heating System
Automated Olive Conveyor Belt
Automated Olive Washing & Defoliation Unit
Automated Olive Crusher Elevator
Automated Control Panel
