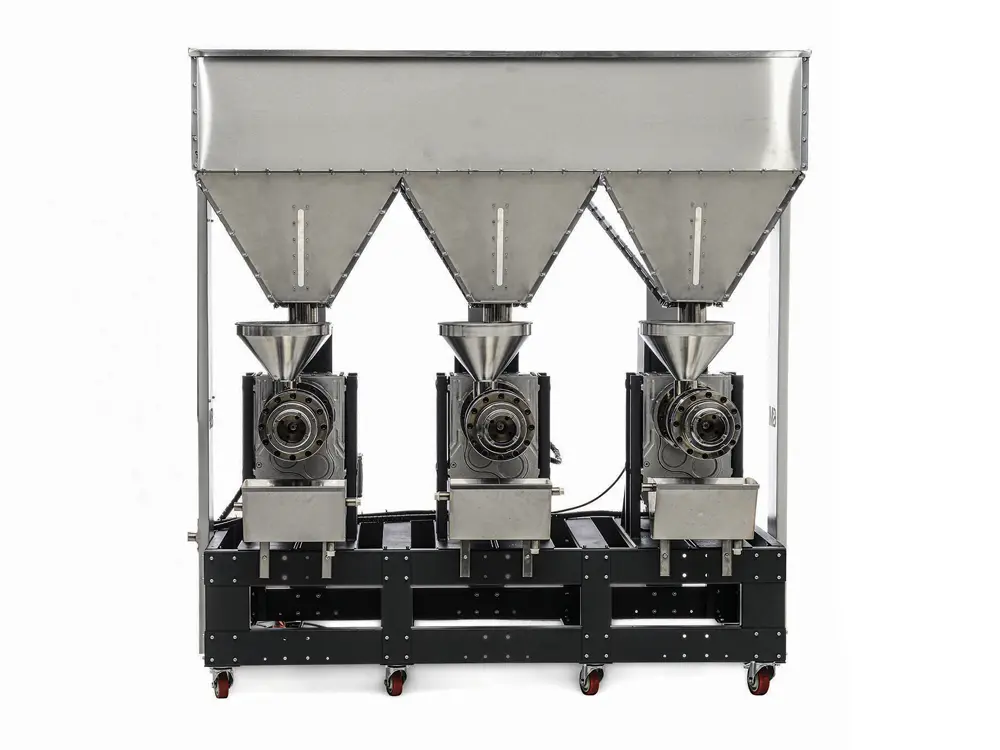

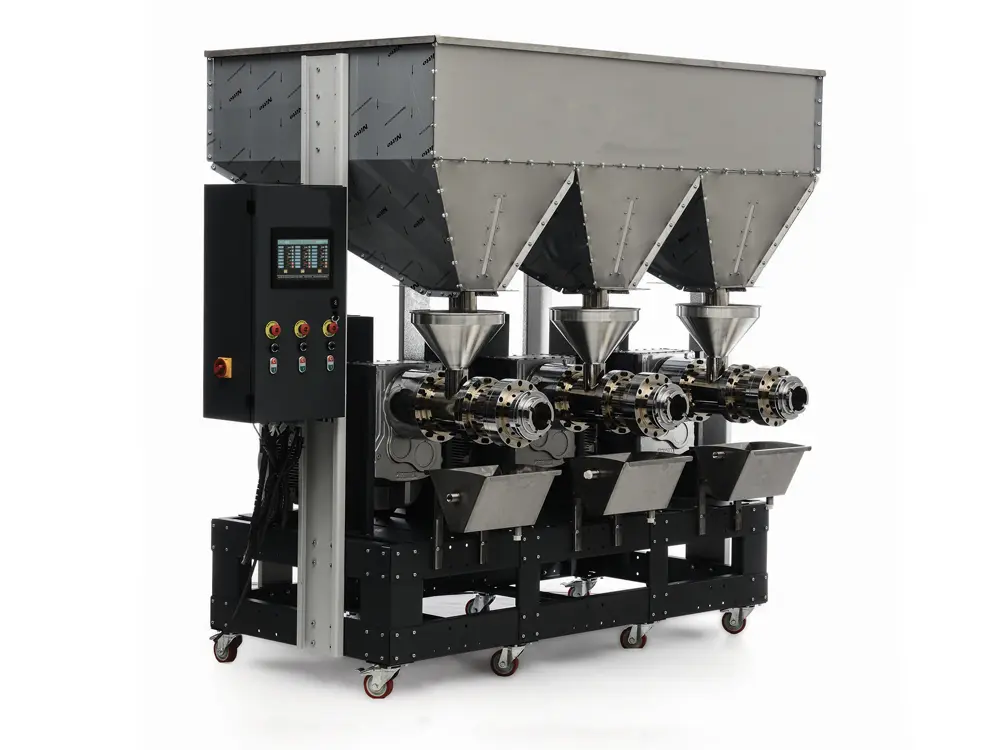

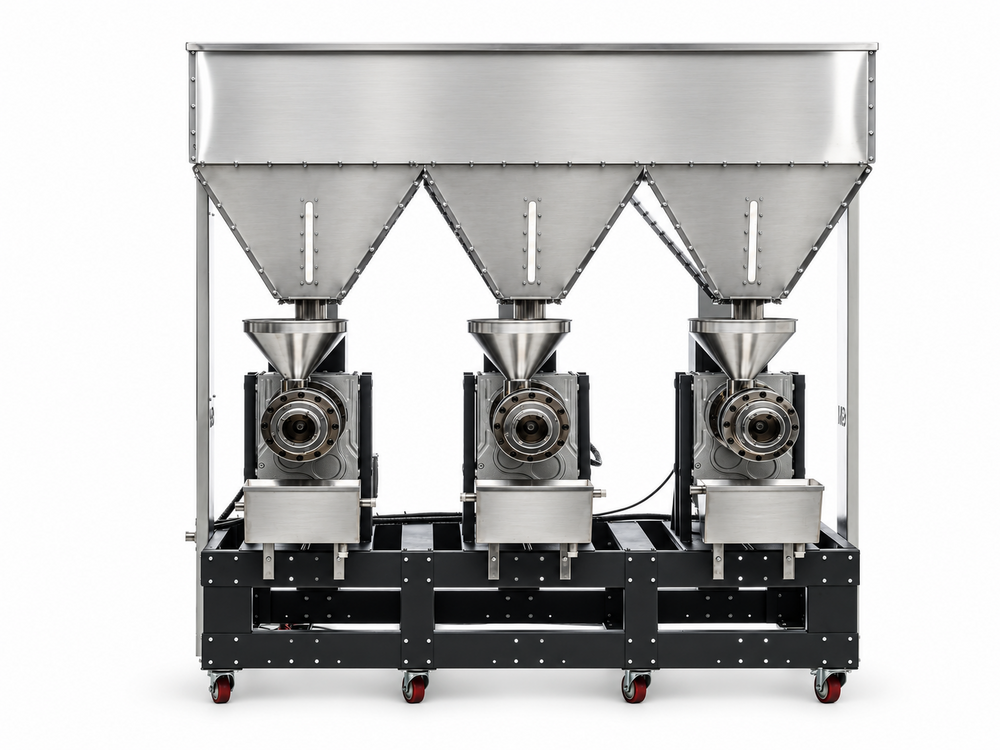

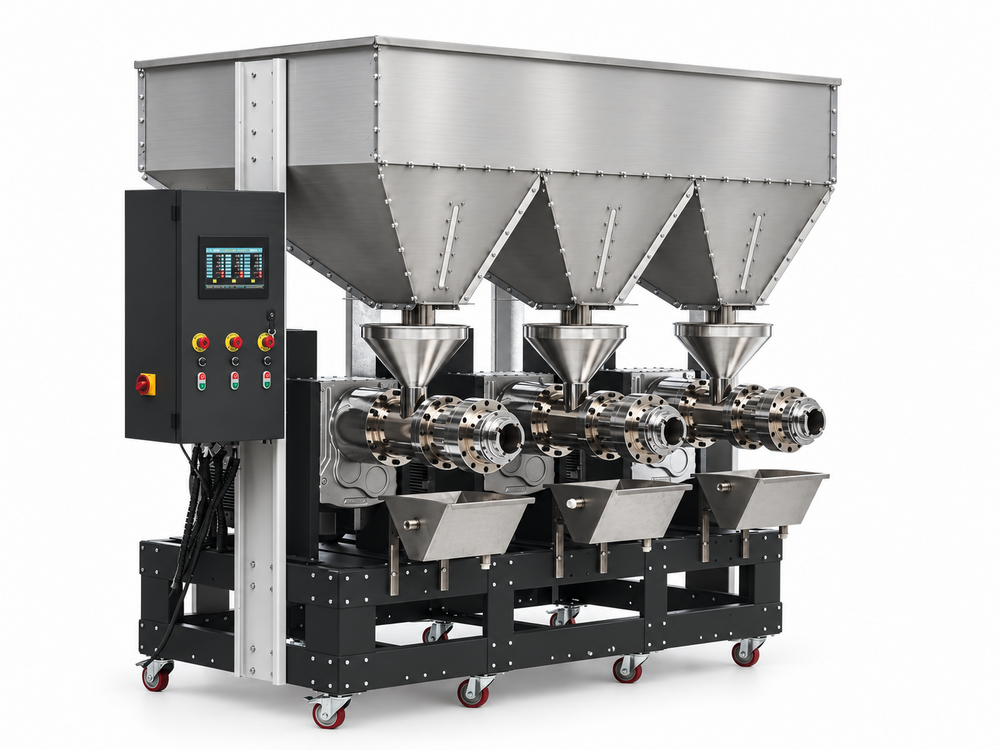

Cold Press Oil Line – 33 KW
The 33 KW Continuous Cold Press Oil Line is an industrial oil production system equipped with three interconnected cold press units. Each pressing unit is powered by an 11 kW industrial motor, providing a total installed motor power of 33 kW.
The system combines three pressing and extraction units with automated seed flow, oil flow, heating and digital machine control. It is designed for professional producers requiring continuous, high-volume cold press oil production.
Depending on the raw material, processing capacity ranges from approximately 240–330 kg/h, with a maximum hourly processing capacity of approximately 330 kg/h.
The 33 KW Continuous Cold Press Oil Line is designed as an integrated industrial oil-processing system rather than a single standalone press. Three high-capacity pressing units operate together within the same production line and are supplied through a common automated seed-flow system.
Manufactured in Turkey by Ekiciler Makine, the system is designed for fixed installation in professional oil-production facilities. A 380 V three-phase industrial electrical supply is required for operation.
Each press is powered by an 11 kW motor. Operating three presses simultaneously provides a total installed motor power of 33 kW and significantly increases total production capacity compared with a single-head industrial press.
Complete Continuous Production System
The 33 KW Continuous Cold Press Oil Line consists of four main systems:
- 3-Head Pressing and Extraction Unit
- Automated Seed Flow and Oil Flow System
- Automated Heating System
- Automated Digital Display Control Panel
Key Features
- Industrial continuous cold press oil production line
- 3 independent pressing and extraction units
- 3 × 11 kW industrial motors
- Total installed motor power: 33 kW
- 380 V three-phase industrial electrical supply
- Automated seed-flow system
- Automated oil-flow system
- Automated heating system
- Automated digital display control panel
- Integrated 900 kg seed-loading system
- Heavy-duty bearing systems
- Automatic lubrication system
- Designed for continuous industrial production
- Industrial steel machine base
- Worldwide technical guidance and after-sales support
Continuous Industrial Operation
The three pressing units operate together as one integrated production line. The automated seed-flow system supplies prepared raw material to the presses, while the oil-flow system collects and transfers the extracted oil.
The large integrated seed-loading capacity helps reduce frequent manual feeding and supports extended production runs in professional oil-processing facilities.
Cold Press Operation
Each pressing unit uses a mechanical screw-press system for oil extraction. The automated heating and digital control systems allow the operator to manage the production process according to the characteristics of the raw material.
Correct raw material preparation is essential for stable production. Seed or nut characteristics such as moisture, hardness, size and oil content directly affect processing capacity and oil yield.
Technical Specifications
| Pressing Units | 3 Press Heads |
| Motor Power per Press | 11 kW |
| Total Installed Motor Power | 33 kW / 33,000 W |
| Power Supply | 380 V / Three Phase |
| Seed Loading Capacity | Approx. 900 kg |
|
Small & Soft Materials Example: Grated Dry Coconut |
240–270 kg/h |
|
Small & Hard Seeds Example: Grape Seed |
240–300 kg/h |
|
Large or Hard Seeds Example: Sunflower Seed |
270–330 kg/h |
| Maximum Hourly Capacity | Approx. 330 kg/h |
| Maximum Production – 12 Hours | Approx. 3,960 kg |
| Maximum Production – 24 Hours | Approx. 7,920 kg |
| Width | 160 cm |
| Length | 270 cm |
| Height | 230 cm |
| Machine Weight | Approx. 1,800 kg |
| HS Code | 847920000019 |
Capacity & Raw Material Notes
- Hourly processing capacity varies according to the hardness, size, oil content and moisture level of the seeds or nuts. Stated capacities are approximate operating values.
- Raw material moisture should normally not exceed 8% and the material must be suitable for mechanical oil extraction.
- Performance issues caused by unsuitable, improperly prepared or excessively moist raw materials are not considered a machine defect.
190+ Tested Seeds, Nuts & Oil-Bearing Materials
Over the years, Ekiciler Makine has carried out pressing tests with more than 190 different seeds, nuts, kernels and oil-bearing raw materials. This practical experience helps us guide customers in selecting suitable preparation methods, operating settings and processing parameters.
Some examples of materials we have worked with include:
- Black Seed / Nigella Sativa
- Flaxseed
- Sesame Seed
- Sunflower Seed
- Pumpkin Seed
- Safflower Seed
- Mustard Seed
- Hemp Seed
- Hemp Flower
- Poppy Seed
- Canola Seed
- Cumin Seed
- Coriander Seed
- Fennel Seed
- Grape Seed
- Pomegranate Seed
- Prickly Pear Seed
- Watermelon Seed
- Melon Seed Kernel
- Tomato Seed
- Pepper Seed
- Rosehip Seed
- Fig Seed
- Raspberry Seed
- Blueberry Seed
- Milk Thistle Seed
- Nettle Seed
- Amaranth Seed
- Neem Seed
- Kaki / Persimmon Seed
- Soybean
- Peanut
- Almond
- Hazelnut
- Walnut
- Macadamia Nut
- Apricot Kernel
- Coconut
- Jojoba Seed
- Castor Seed
- Tamanu Seed
- Sacha Inchi
- Cocoa Bean
- Cocoa Nibs
- Shea
- And many more...
Processing capacity, oil yield and recommended operating settings vary according to the characteristics and preparation of each raw material.
See Our Continuous Oil Press Lines in Operation
Visit our YouTube channel to see cold press oil production lines, machine demonstrations, production tests and videos with different seeds, nuts and raw materials.
Visit Our YouTube ChannelAfter-Sales Support & Operating Guidance
Our support does not end when the production line is delivered. We provide practical guidance to help customers understand the complete system and achieve stable production results.
Customers receive operating instructions and instructional videos. We also provide remote support through WhatsApp for machine operation, raw material preparation, pressing settings, seed-flow adjustments, cleaning and routine maintenance.
If an operating issue cannot be solved through messages or videos, our technical team can provide video-call assistance and guide the operator step by step. Our goal is not only to supply the production line, but also to provide the practical knowledge required to operate it successfully.
Warranty & Spare Parts Support
- Motor and gearbox: 1-year warranty
- Motor drives: 2-year warranty
- Other electrical components: 2-year warranty
- Spare parts supply available for 10 years
Normal wear parts and damage caused by incorrect operation, improper maintenance or external factors are not covered by the warranty.
