Olive Oil 200 KG


Boutique Type Olive Oil Machine - Cold Press Method

 OLIVE OIL 200KG Boutique Type Olive Oil Machine

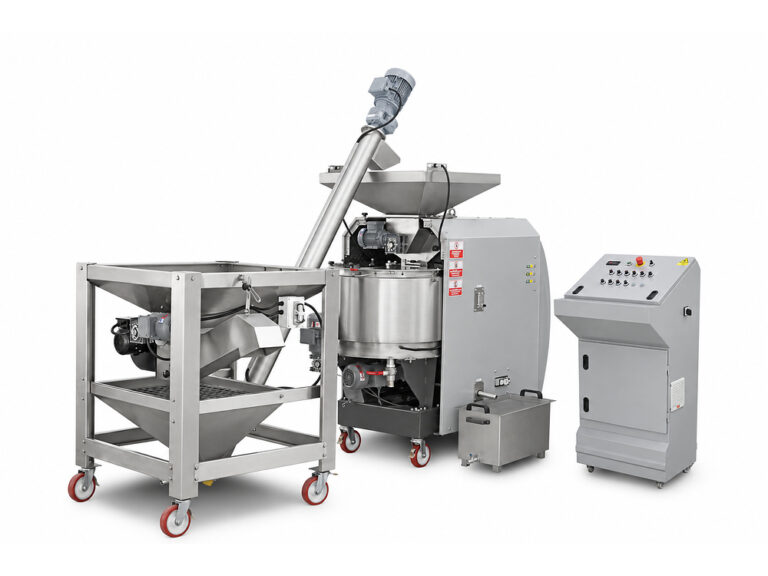

System consists of 3 equipments;

1- OLIVE OIL 200 KG Extraction Unit


1 - OLIVEOIL 200 KG Extraction Unit

It has the capacity to process 150-200 kg of olive paste per hour. It is portable and can be conveniently moved to different areas.  Processing the olives, you collect daily in a fresh way; you can consume the olive oil you produce on your own.

OLIVE OIL 200 KG series processes the olive paste at different speeds and based on the type and collecting time of the olives, thus, enables you to work more comfortably. Malaxator heating system is produced as standard equipment, and it enables the olive paste to be processed in the ideal temperature range based on the need (18-27 degrees).  Olive oil output yield is increased thanks to the malaxator heating system.




Olive Washing and Defoliation Unit is a model that works effectively for olives that have dense leaves and pieces of branches. It keeps possible stones and foreign bodies that might have fallen in the washing unit in its chamber thus prevents damages to the system.

Our special production machine is different from other olive washing units in terms of equipment and capacity.  The unit works directly coupled to an olive conveyor band and an olive crusher elevator. It is an ideal model for enterprises with high daily olive processing tonnages.

The system starts to operate after the olive washing unit is filled with water and the olives are put into the vibrating bunker of the washing unit via the olive conveyor belt. The olives moving through the vibrating bunker pass through the aspirator and are debranched and defoliated. The olives moving through the water channel with a continuous water circulation flow, pass through a grid and pour into the olive bunker of the crusher elevator in a clean state. The special curved area of the unit keeps foreign bodies with high density here. Foreign bodies are thrown out of the system by a manually operated discharge spiral.



It is the control panel of all system. It is positioned next to extraction unit. With the multi plug, connection is maden on extraction unit and washing unit.


Why Olive Oil 200 KG Boutique Type Olive Oil Machine? ( Advantages )

  • Provides the advantage to pay off early with low investment cost
  • Makes olive oil production in a limited area possible thanks to the reduced machine sizes
  • Provides advantage for branding of your own production
  • Creates added value by maintaining olive oil quality criteria during production
  • Equipment and machine options suitable for various production purposes
  • Affordable energy consumption cost, affordable processing of olives collected daily
  • Not causing any harm to the environment and being exempt from various documents and projects required by the Ministry of Environment for olive oil production
  • Has the necessary conditions for the production of organic olive oil
  • Minimizes olive oil leakage to olive mill pomace


Warranty Terms

  • Machine motor and gearbox is guaranteed worldwide for 1 year by its manufacturer Watt-Drive.
  • Motor driver is guaranteed worldwide for 2 years by its manufacturer Other electrical parts are also under 2 year warranty.
  • All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
  • Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by self infliction or incorrect operation.


Technical Specifications OLIVE OIL 200KG - Boutique Type Olive Oil Machine

Capacity: 150 – 200 kg/h
380 Volt, 50 Hz
Decanter Drive: Cycloid Gear Box

Decanter Helix: Wear resistant

Olive Paste Heating System ( Optional )

Automated Olive Washing & Defoliation Unit
Automated Control Panel
