Olive Oil 400 KG

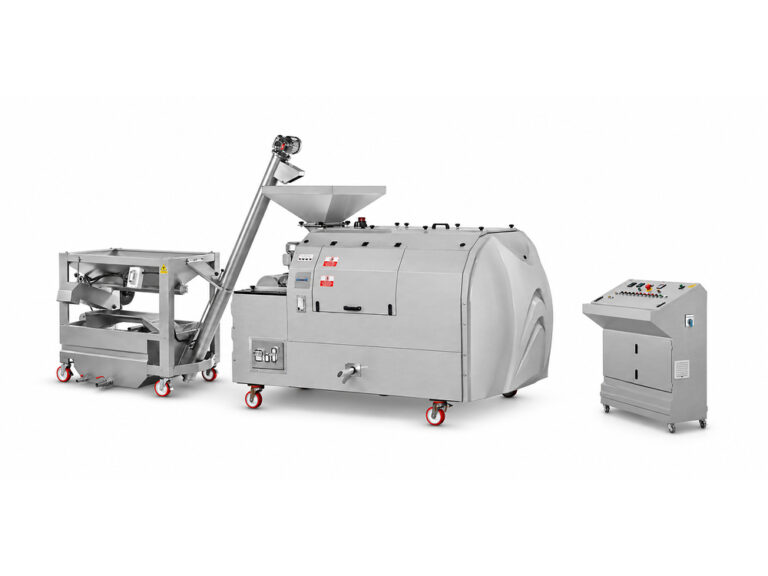

OLIVE OIL 400 KG Boutique Type Olive Oil Machine

The system consists of 3 separate equipment.;

1- OLIVE OIL 400 KG EXTRACTION UNIT
2- AUTOMATED OLIVE WASHING & DEFOLIATON UNIT
3- AUTOMATED CONTROL PANEL

1 - OLIVE OIL 400 KG Extraction Unit

It is a model preferred by large-scale boutique olive oil producers.  Operated with auxiliary machinery and equipment, it enables you to reach high production capacities in limited production locations. OLIVE OIL  400 KG series machines have the capacity to process 350-400 kg of olive paste per hour. Its double malaxator structure enables olives of different types and sizes to be simultaneously processed in separate malaxators reducing waiting times, thus it enables the olives of different types and sizes to be processed faster. The cycloid gear box system in the machine gives the decanter more strength and enables it to work more quietly.

OLIVE OIL  400 KG processes the olive paste at different speeds by making adjustments based on the olive type and harvesting time of the olives, thus, enables you to work more comfortably.  Particularly in order to provide an advantage in production areas without air conditioning, the malaxator heating system produced as standard enables olive paste to be processed within the ideal heat range (18 - 27 degrees) based on the need and increases your olive oil output yield.

2 - AUTOMATED OLIVE WASHING & DEFOLIATON UNIT

Olive Washing and Defoliation Unit is a model that works effectively for olives that have dense leaves and pieces of branches. It keeps possible stones and foreign bodies that might have fallen in the washing unit in its chamber thus prevents damages to the system.

Our special production machine is different from other olive washing units in terms of equipment and capacity.  The unit works directly coupled to an olive conveyor band and an olive crusher elevator. It is an ideal model for enterprises with high daily olive processing tonnages.

The system starts to operate after the olive washing unit is filled with water and the olives are put into the vibrating bunker of the washing unit via the olive conveyor belt. The olives moving through the vibrating bunker pass through the aspirator and are debranched and defoliated. The olives moving through the water channel with a continuous water circulation flow, pass through a grid and pour into the olive bunker of the crusher elevator in a clean state. The special curved area of the unit keeps foreign bodies with high density here. Foreign bodies are thrown out of the system by a manually operated discharge spiral.

 3 - CONTROL PANEL

It is the control panel of all system. It is positioned next to extraction unit. With the multi plug, connection is maden on extraction unit and washing unit

Why OLIVE OIL 400 KG Boutique Olive Oil Machine ? ( Advantages )

• Olive Oil 400 KG is an compact machine processing approximately 350-400 kg olive paste in an hour and designed exclusively for boutique olive oil manufacturers.
• It is suitable for organic production conditions.
• It processes the olive by protecting the beneficial elements and does not cause oxidation.
• Thanks to its double malaxing units, it is possible to process different kinds of olives with different malaxing units at the same time.
• Thanks to heating system of malaxing units, olive paste is processed in intended temperature.
• Decanter has been designed to provide minimum olive oil residual in residue container.
• Olive Oil 400 KG has been designed to be operated by only one personnel and it provides labor-saving to the manufacturer.
• As it is a portable machine, it can be moved to intended location with the aim of its wheels.
• Boutique type olive oil machines are environment friendly, glaucoma waste cannot be discharge from the system directly.
• All surfaces contacting with the food have been manufactured from AISI 304 stainless steel.

Warranty Terms

• Machine motor driver and all semi-automatic parts are guaranteed for 2 years. Other electrical parts are also covered by a 2-year warranty.
• All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
• Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by self infliction or incorrect operation.

Technical Specifications OLIVE OIL 400KG - Boutique Type Olive Oil Machine

Capacity: 350 – 400 kg/h
380 Volt, 50 Hz
Decanter Drive: Cycloid Gear Box
Decanter Helix: Wear resistant
Double malaxator as horizontal
Olive Paste Heating System
Automated Olive Washing & Defoliation Unit
Automated Control Panel
