Compact Model 2

Compact Model 2

Industrial Oil Press Machine

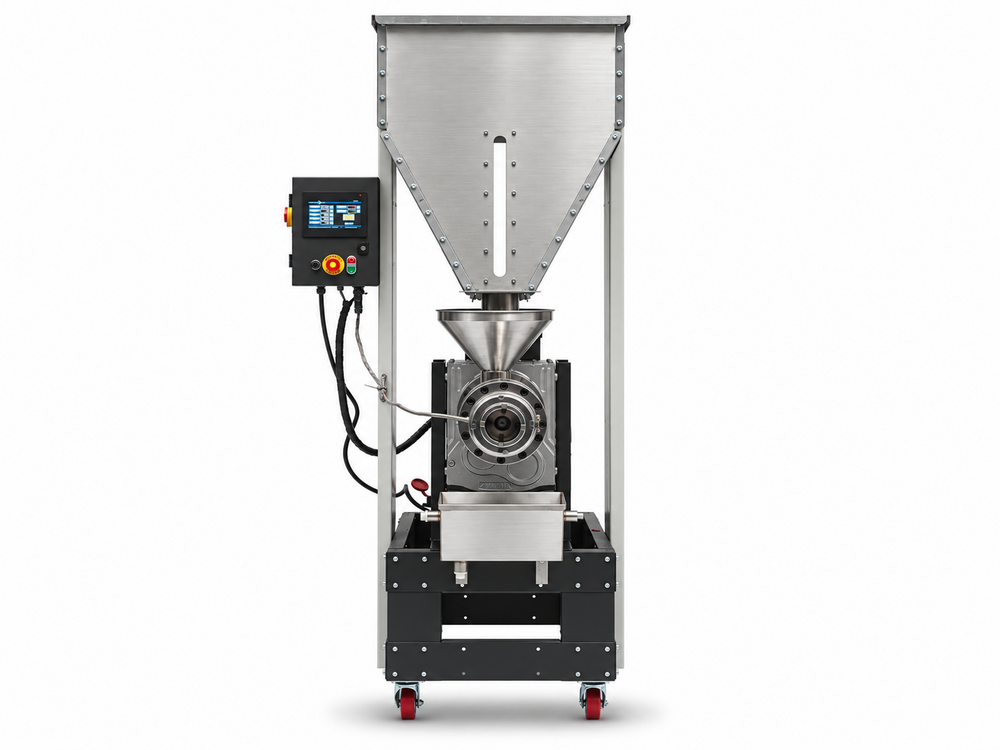

Compact Model 2 - Industrial Oil Press Machine



Our biggest compact oil press machine, which can produce oil as a stand alone oil factory. This model is the largest oil press machine unit we have ever developed. Please see below for engine power and production quality details.



Compact Model 2 Industrial Oil Press Machine is produced to gird maximum amount in shortest time.



This is Compact Model 1 extracts 70 to 90 kg of seeds in an hour. You can see the videos of the Compact Model 1 extracting seeds.



With our Cold Press Oil Machine, you can extract the oil of all seeds and nuts.For example, some seeds:

Safflower seeds, Sunflower Seeds, Sesame Seeds, Hemp Seed, Hemp Flower, Pumpkin Seeds, Black Cumin(Black Seed), Nigella Seeds, Prickly Pear Seed, Grape Seed, Coconut, Hazelnut, Peanut, Walnut, Poppy, Flax Seed, Kaki Seeds, Almond, Jajoba Seed, Pomegranate Seed, Castor Seed, Canola, Melon Seed Kernel, Cumin Seed, Apricot Kernel, Mustard Seed, Nettle Seed, Neem Tree Seed, Tomato Seeds, Raspberry, Pepper Seed, Rosehip Seed, Cocoa Bean, Cocoa Nibs, Soya bean, Thistle Seed(milk thistle seed) Blueberry Seed, Tamanu Seed, Sacha Inchi, Coriander, Fennel Seed, Shea Butter etc.

Technical Specifications

Technical Specifications CMODEL 2
Motor Power (kW) 11 kW
Power Supply (Volt) 380/ 3-ph
Heater (kW) 0.6
Max Capacity (kg/h) 150
Energy Consumption (watt/h) 6000 to 11000
Processing Capacity (kg/h) 70 - 90
Efficient Processing Capacity (kg/h)
(most efficient use of electricty)
50
Residue Oil in Cake (%) <=%6
Processing Capacity (kg/24h) 3600



Measurement (L*W*H) (cm)
length (cm) 145
width (cm) 80
height (cm) 220
weight (kg) 500



Cargo Specifications
length (cm) 160
width (cm) 120
height (cm) 235
weight (kg) 550
Pallette / Box Palette



Hs Code / Gtip Code 847920000019





 Warrant Terms

  • Machine motor and gearbox is guaranteed for 1 year by its manufacturer.
  • Motor driver is guaranteed worldwide for 2 years by its manufacturer Other electrical parts are also under 2 year warranty.
  • All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
  • Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by self infliction or incorrect operation.



Spare Parts and Tools Included with the Machine Sale

  • 1 piece moon key
  • 1 piece allen key
  • 5 piece nozzles
  • 1 piece feeding funnel
  • 1 piece heating ring
